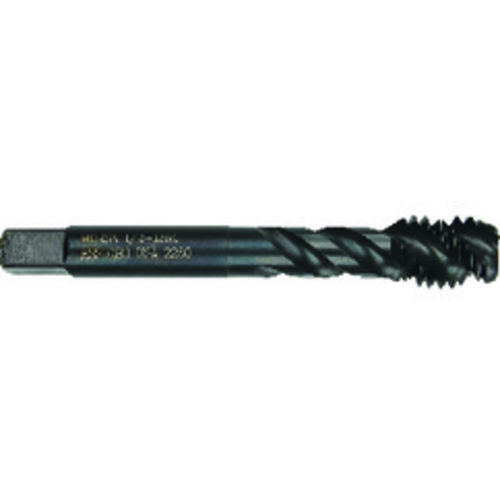

‎2091 SHEARTAP 5/16-24 H4

‎Spiral Flute Tap; 5/16″ - 24 ; 2-23/32″ OAL ; 3 FL ; HSS ; Black Oxide ; H4 ; Series 2091

Item # MT3534473

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 34473

UPC #: 01029545 | 68612534473 | 686125344733

Quantity Available

Thread Diameter Size (TDZ)

5/16″

Thread Tolerance Class (TCTR)

Threads per Inch (TPI)

Special Feature

ShearTap

Thread Standard

Tool Type

Production Tap

Overall Length (OAL)

‎2-23/32″

Chamfer

Semi-Bottoming

Thread Cutting Part Length (THL)

0.472″

Coating

Black Oxide

Flute Count (NOF)

Flute Type

Spiral

Flute Helix Angle (FHA)

48 Degrees

Style

Semi-Bottoming

Applicable Material

| Steel | Stainless Steel |

Measurement Type

Inch

Cutting Edge Material

HSS

Series/List #

2091

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.

Country of Origin

USA

Shipping Info

Additional Fees and Notes

Package Length

4.00000

Package Width

.37500

Package Height

.37500

Package Weight

0.05
