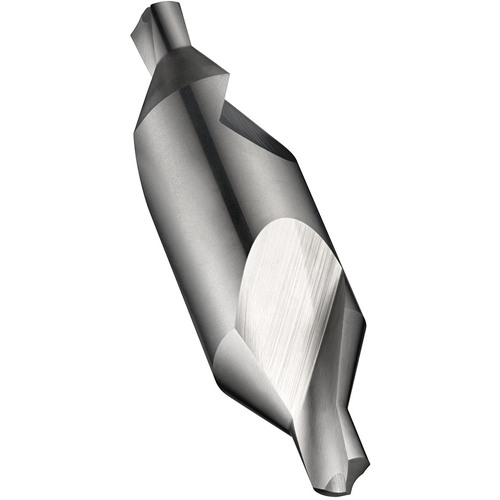

1.6X4.0 MM Dormer HSS Bright 118 Centre Drill - 60 Short Center 60 DIN 333A E-code # A2001.6X4.0
Drill Bit; 4 mm Dia. × 35 mm OAL ; 118 Degrees ; Round Shank ; HSS ; Uncoated ; Series A122
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 4 mm | Application | Centre Drills |
| Decimal Equivalent | 0.1575 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm | Flute Length | 2.6 mm |
| Point Angle (SIG) | 118 Degrees | Point Diameter (PDD) | 1.6 mm |
| Angle | 60 Degrees | Length Group | 1D | Short/Stub |
| Overall Length (OAL) | 35 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Tool Type | Center Drill |
| Coating | Uncoated | Series/List # | A122 |
| Cutting Edge Material | HSS |
Product Features
| Family Description | E-code # A2001.6X4.0 | Country of Origin | JAPAN |
Shipping Info
Package Weight
.533
