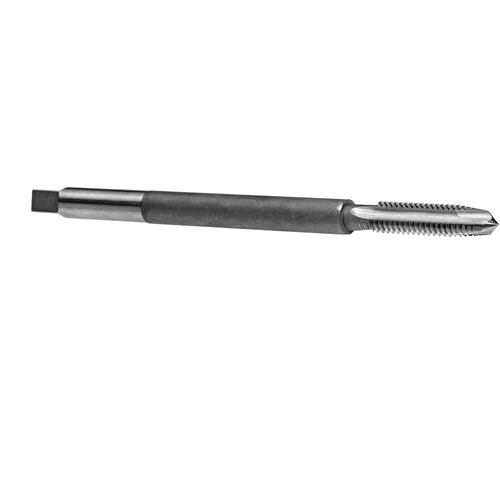

M16X2.0 3FL D-7 6″O/A SPPT PLUG METRIC PULLEY TAPS 113M
| Thread Diameter Size (TDZ) | M16 | Tool Type | Extension Tap |
| Thread Pitch (TP) | 2 mm | Chamfer | Plug |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 6″ | End Shape | Spiral Point |
| Thread Cutting Part Length (THL) | 1-13/16″ + GAP | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.633″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 113M |
| Thread Tolerance Class (TCTR) | D7 | Thread Size | M16 × 2 |
| Special Feature | Pulley Shank |
Product Features
| Remarks | •Metric 6″ O/A Pulley & Small Shank Extension Taps •Plug and Spiral Point Plug Class 6H Fit | Country of Origin | USA |
Shipping Info
Package Length
6.30000
Package Width
.90000
Package Height
.90000
Package Weight
0.587
