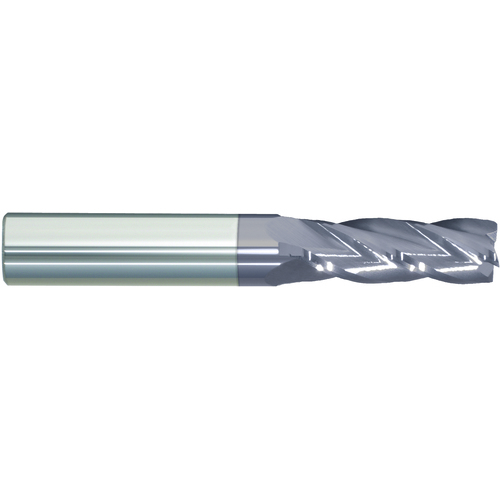

4 mm Dia. × 4 mm Shank × 14 mm DOC × 51 mm OAL Carbide 4 Flute 30° Helix End Mill Series/List #5961T
| Cutting Diameter (DC) | 4 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 14 mm |
| Depth of Cut Maximum (APMX) | 14 mm | Tool Type | Single End |
| Overall Length (OAL) | 51 mm | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | 5961T |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.02
